Reconstructing Feature-Line Equipped Polygonal Surface.

What is it about?

Feature lines are important geometric cues in characterizing the structure of a CAD model. Despite great progress in both explicit reconstruction and implicit reconstruction, it remains a challenging task to reconstruct a polygonal surface equipped with feature lines, especially when the input point cloud is noisy and lacks faithful normal vectors. In this paper, we develop a multistage algorithm, named RFEPS, to address this challenge. The key steps include (1)denoising the point cloud based on the assumption of local planarity, (2)identifying the feature-line zone by optimization of discrete optimal transport, (3)augmenting the point set so that sufficiently many additional points are generated on potential geometry edges, and (4) generating a polygonal surface that interpolates the augmented point set based on restricted power diagram. We demonstrate through extensive experiments that RFEPS, benefiting from the edge-point augmentation and the feature-preserving explicit reconstruction, outperforms state-of-the-art methods in terms of the reconstruction quality, especially in terms of the ability to reconstruct missing feature lines.

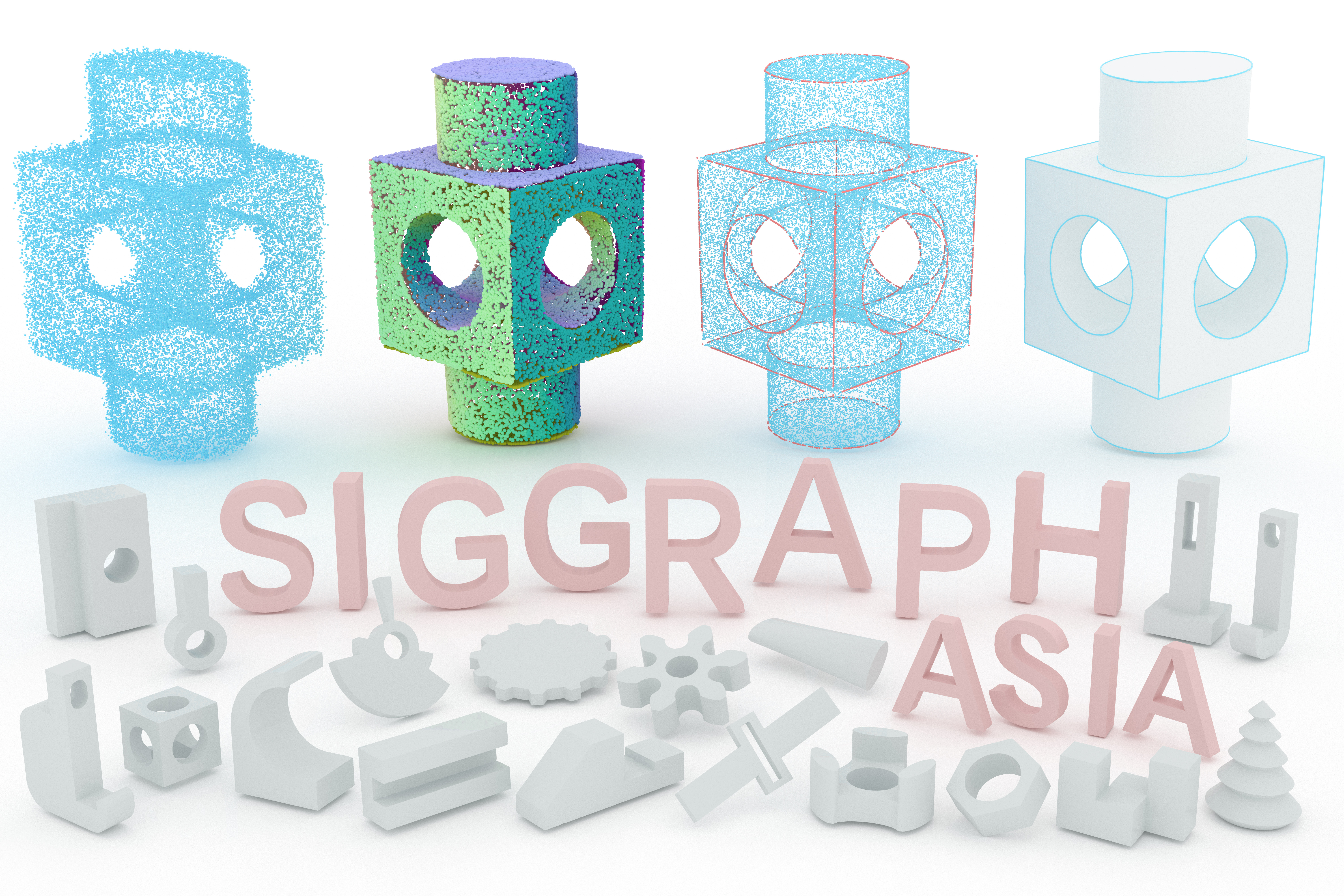

Featured Image

Why is it important?

Inferring geometry from a low-quality point cloud belongs to the reverse engineering category, which is a fundamental problem in computer-aided design.
